AGFRC A62CLS 14KG Low Profile Coreless Servo for 1/10 RC Cars
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.

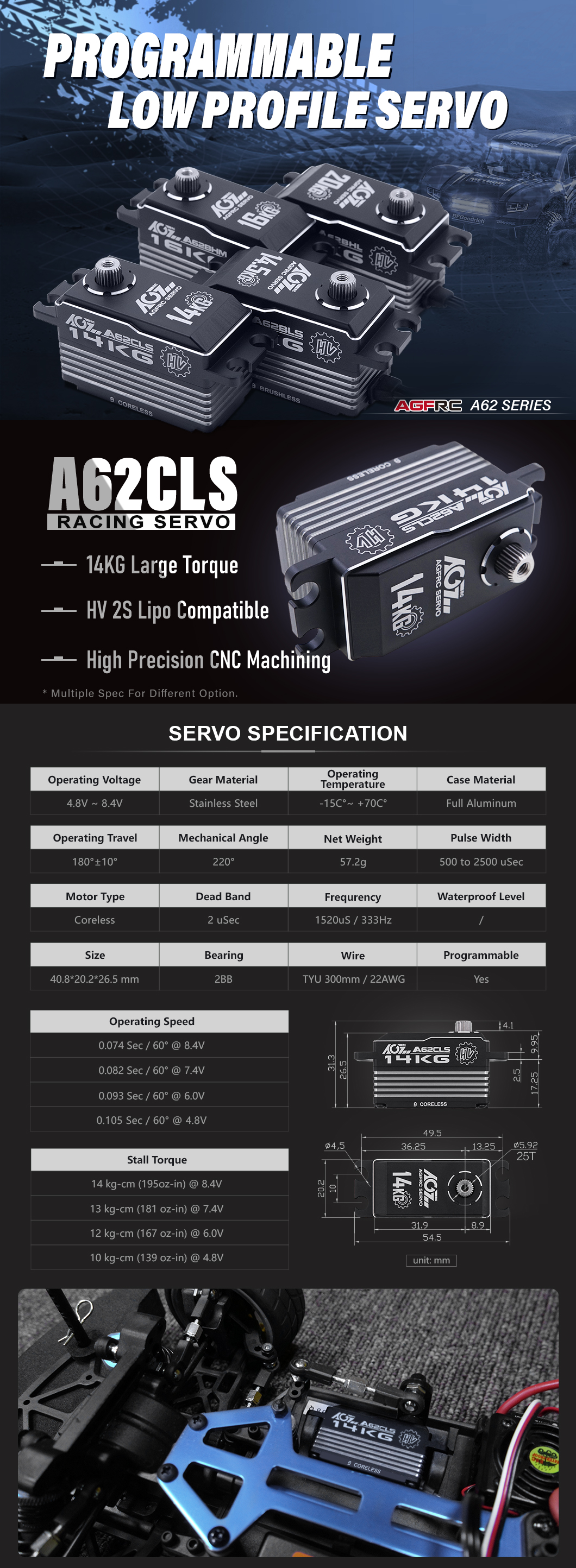

AGFRC A62CLS 14KG 0.074sec HV Programmable Low Profile Coreless Digital Servo with Steel Gears
➤ The AGFRC A62CLS is a fast low-profile coreless digital servo for compact 1/10 RC steering installations. It delivers up to 14.0 kg-cm torque and 0.074 sec/60° speed at 8.4 V, making it suitable for builds that prioritize speed and slim mounting.
➤ With FET drive, potentiometer sensing, strength steel gears, 2BB metal bearings and an aluminum case, the A62CLS offers programmable HV control in a lightweight 57.2 g low-profile package.
Main Features
● Maximum stall torque of 14.0 kg-cm at 8.4 V
● Fast 0.074 sec/60° speed at 8.4 V
● Low-profile 40.8 x 20.2 x 26.5 mm body for 1/10 RC chassis
● Coreless motor with FET drive for smooth steering response
● Strength steel gears for dependable power transfer
● Programmable PWM digital control with 2 μsec dead band
● Aluminum case with 2BB metal bearing support
● Lightweight 57.2 g construction with 25T-Ø5.92 mm spline
Applications
➤ Ideal for 1/10 scale RC drift cars, touring cars, crawlers and trucks that need a fast 14KG low-profile coreless steering servo.
Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 200mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5 mm (1.61 × 0.80 × 1.04 in)
Weight
57.2 g (2.02 oz)
Operating Speed
0.105 sec/60° @4.8V
0.093 sec/60° @6.0V
0.083 sec/60° @7.4V
0.074 sec/60° @8.4V
Stall Torque
10.0 kg·cm (139 oz·in) @4.8V
12.0 kg·cm (163 oz·in) @6.0V
13.0 kg·cm (181 oz·in) @7.4V
14.0 kg·cm (195 oz·in) @8.4V
Package Includes
● 1 x A62CLS Servo
● 1 x 25T Metal Horn
● 2 x 25T Plastic Horns
● 4 x Mounting Screws
● 1 x Horn Screw
● 4 x Rubber Pads
● 4 x Copper Sleeves
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
