AGFRC
A62CLM Metal Gears 18KG 0.11Sec HV Programmable Digital Short Case CLS Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC A62CLM Metal Gears 18KG 0.11Sec HV Programmable Digital Short Case CLS Servo
➤ AGFRC A62 Series servos are completely metal case and housing low-profile servos. Full high-precision aluminum case with heat sink ribs machining, faster heat dissipation for a longer lifespan of the motor. 57.2g super lightweight for the whole servo, dust-proof and splash-proof shell with high sealing performance, which allow to be used in a humid environment. Double metal ball bearings and metal gears provide smoother and more durable performance during operation.
➤ This A62CLM version brings 18KG 0.11Sec super spec at 8.4V with high efficient coreless motor. The whole A62 series servos are available to be programmed, and people can adjust the parameters via the software. Of course, the default setup is the optimized spec for long lifespan and good performance. 4 different spec options for different models, such as 1/10, 1/12 racing cars, drift cars, on-road, buggy, airplane, helicopter, robo,t etc.
MAIN FEATURES
➤ High Performance Low Profile Digital Servo.
➤ High Precision Steel Gear.
➤ High Quality Coreless Motor.
➤ Aluminium Heat Sink Cooling Case.
➤ Water And Dust Resistance.
➤ Programmable Digital Circuit.
➤ Ideal for 1/10, 1/12 On Road Car, Drift Car, Boat, Aircraft, Robot, etc.

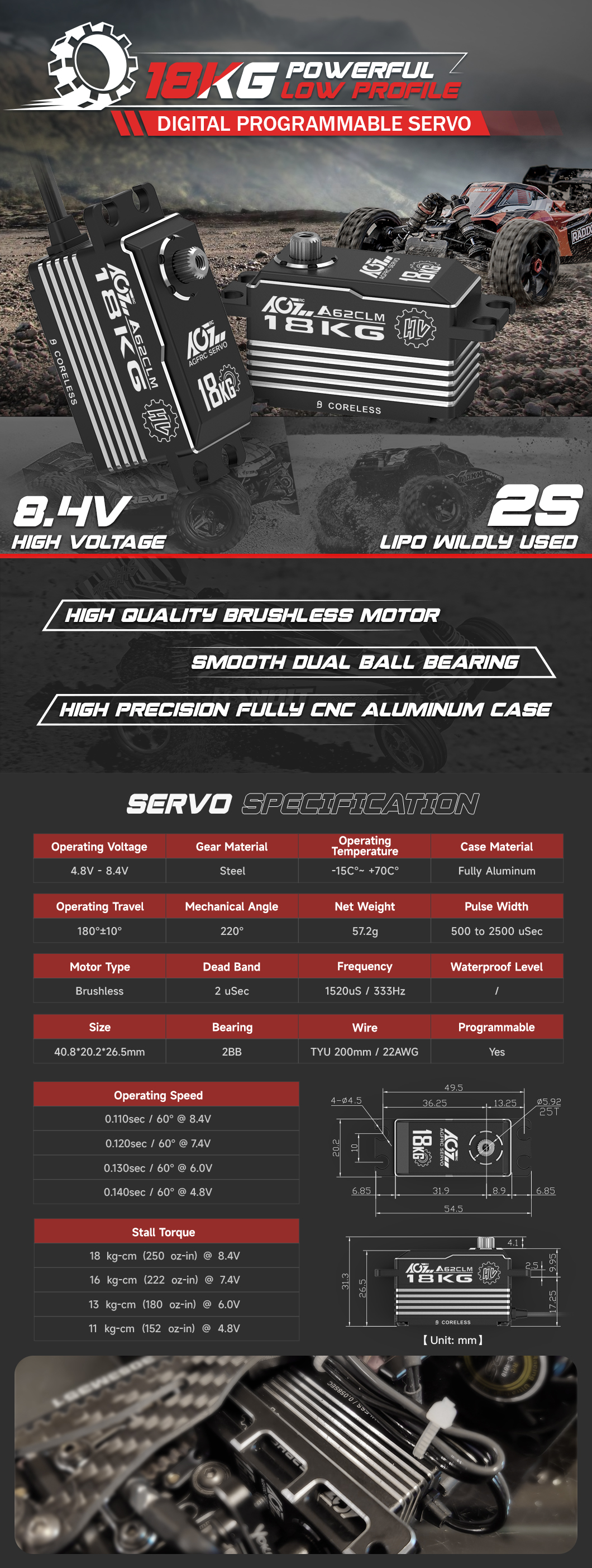

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 200mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5mm
Weight
57.2g
Operating Speed
0.140 sec/60° @4.8V
0.130 sec/60° @6.0V
0.120 sec/60° @7.4V
0.110 sec/60° @8.4V
Stall Torque
11.0 kg·cm (152 oz·in) @4.8V
13.0 kg·cm (180 oz·in) @6.0V
16.0 kg·cm (222 oz·in) @7.4V
18.0 kg·cm (250 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A62CLM Servo
➤ 1 x 25T Metal Horn
➤ 2 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
