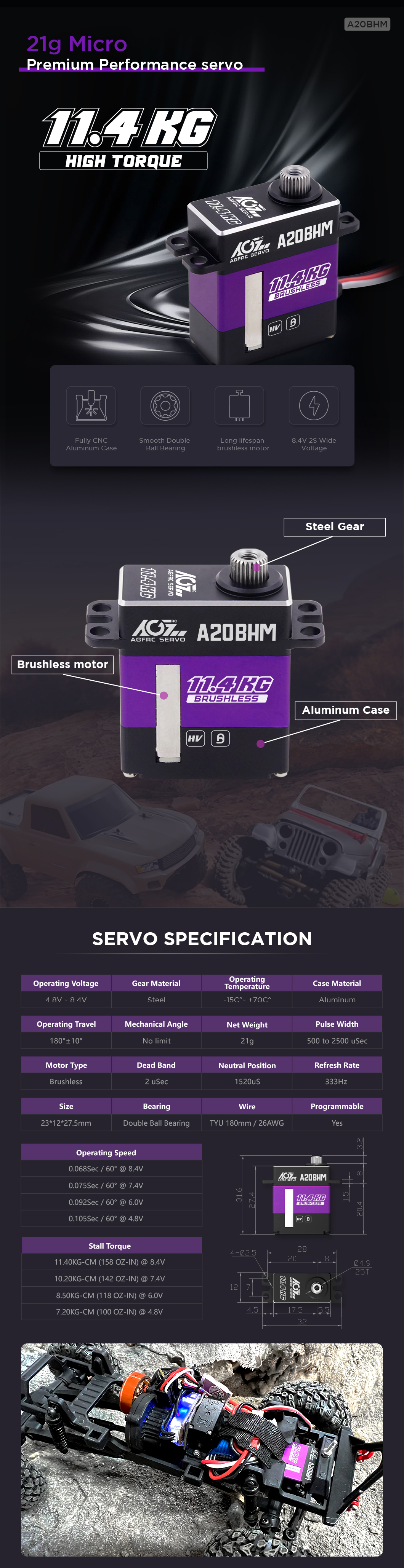

Aluminum Case HV 11.4KG 0.068sec High Torque Brushless Micro Digital Steering Servo (A20BHM)
AGFRC A20BHM Strength Steel Gear 11.40KG 0.068Sec 8.4V Fast Speed 21g Metal Case HV Brushless Digital Mini Servo For RC Aircraft /Car
AGFrc A20BHM, is the 8.4V high voltage compatible performance digital mini servo, also the first launch brushless motor 12mm thickness RC servo. The biggest highlight of this product is the use of a newly designed brushless motor. With this support, the speed of servo can reach 0.068sec and the torque can even reach 11.4kg-cm at 8.4V in this Mini size. It is made in a robust CNC aluminum case with high accuracy metal gears, it particularly ideal for RC cars and other application, like robot arm, teaching and other agricultural applications which asked for a 11.4kg-cm BLS mini size servo.
Feature
High Performance Digital Wing servo High Precision Metal Gears High Quality Brushless Motor Double Ball Bearings Full Aluminum Case Ideal for Airplane and Glider
Specification
A20BHM Operating Voltage: 4.8-8.4 V Operating speed: 0.105sec/60°@ 4.8V Operating speed: 0.092sec/60°@ 6.0V Operating speed: 0.075sec/60°@ 7.4V Operating speed: 0.068sec/60°@ 8.4V Stall Torque: 7.2 kg-cm (100 oz-in) @ 6.0V Stall Torque: 8.5 kg-cm (118 oz-in) @ 6.0V Stall Torque: 10.2 kg-cm (142oz-in) @ 7.4V Stall Torque: 11.4 kg-cm (158 oz-in) @ 8.4V Gear: Strength Steel + Copper Motor: Brushless Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in) Weight: 21g Connector Wire: TYU 180 mm / 26AWG
- Brand:
- AGFRC
- Iterm Name:
- A20BHM
- Signal Mode:
- Digital
- Control System:
- Pulse width modulation control
- Refresh Rate:
- 333Hz
- Neutral Position:
- 1520uS
- Dead band:
- 2 uSec
- Operating Voltage:
- 4.8V~8.4V
- Operating Travel:
- 180°±10°
- Mechanical Angle:
- No Limit
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Potentiometer
- Temperature:
- -15C°~ +70C°
- Motor Type:
- Brushless
- Motor Drive:
- FET Drive
- Programmable:
- Yes
- Horn Gear Spline:
- 25T-φ4.94mm
- Bearing:
- Double Ball Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- AL6061T6
- Certification:
- CE,FCC,RoHs
- Product Size:
- 23*12*27.5mm(0.91*0.47*1.08 inch)
- Wire Guage:
- TYU 180mm / 26AWG
- Net Weight:
- 21g(0.74oz)
