A20BHM 0.068Sec High Speed 11.5Kg High torque Aluminum Case HV High Torque Brushless Micro Digital Servo

$79.99 piece
items available

With sufficient stock, packages will be shipped within 2 working days.

Insufficient stock, we will inform you as soon as the lead time is confirmed.

The package is expected to be delivered within 4 - 9 days after shipment.

Contact Us

Product Tag:

Mini Servo

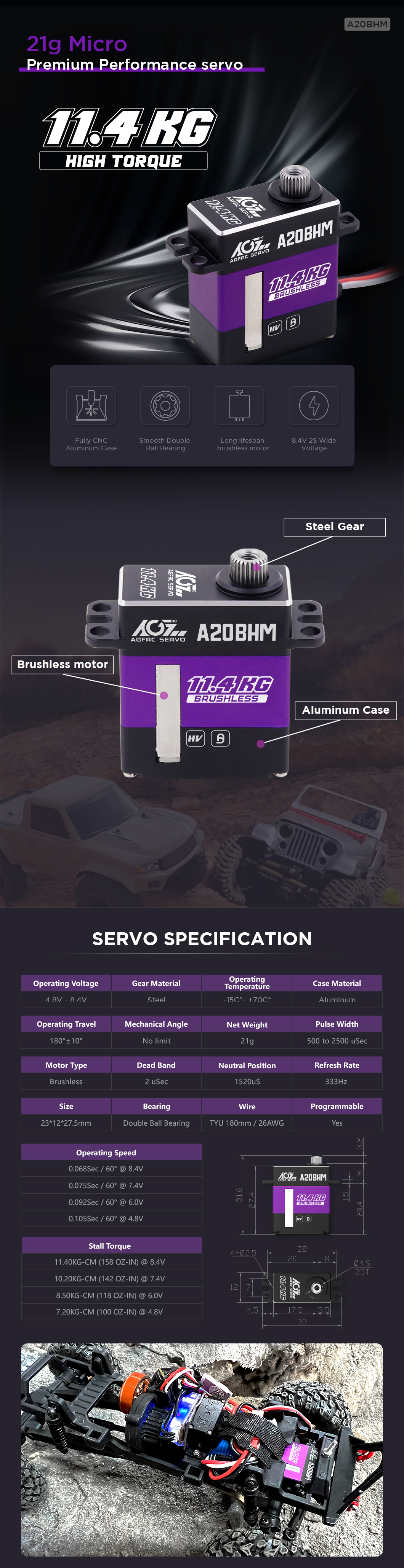

AGFRC A20BHM 0.068sec Fast Response 11.4kg Super Torque Brushless Motor Steel Gear CNC Programmable Mini Servo For RC Cars
➤ AGFRC A20BHM is the 8.4V high voltage compatible performance digital mini servo, also the first launch brushless motor 12mm thickness RC servo. It is made in a robust CNC aluminum case with high-accuracy metal gears, making it particularly ideal for RC cars and other applications.
MAIN FEATURES
➤ High Precision Metal Gears.
➤ Fully CNC Aluminium Case.
➤ Long Performance Life Brushless Motor.
➤ Digital Programmable 25T Mini RC Servo.
➤ Good Smoothness Double Ball Bearings.
➤ Ideal for 1/24 Scale RC Monster Car, SCX10.3, SCX24, Racing Car, etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 26AWG
Wire Color



Dimensions
23*12*27.5mm
Weight
21g
Operating Speed
0.105 sec/60° @4.8V
0.092 sec/60° @6.0V
0.075 sec/60° @7.4V
0.068 sec/60° @8.4V
Stall Torque
7.2 kg·cm (100 oz·in) @4.8V
8.5 kg·cm (118 oz·in) @6.0V
10.2 kg·cm (142 oz·in) @7.4V
11.4 kg·cm (158 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A20BHM Servo
➤ 4 x 25T Plastic Horns
➤ 3 x Mounting Screw
➤ 1 x Horn Screw
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
Download
Normal Firmware Latest
Download
3D File
Download

+
