AGFRC Direct C037CLS Plastic Gear 3.7g Micro Digital Corelesss Servo Motor for RC Airplane Helicopter
stars, based on 0 reviews
Estimated Standard shipping time is about 4 ~ 8 days
For the inventory goods, the package will be dispatched within 3 working days
C037CLS Super Light 3.7g Fast Response Plastic Micro Servo 0.55kg / 0.06Sec
AGFRC C037CLS is a 3.7g super lightweight digital micro servo. It has 0.06sec fast response and 0.55kg high torque at 6.0V. it is work well between -10 degree to 50 degrees. The combination of plastic gear and coreless motor makes it suitable for 1:35 Scale RC Cars and planes applications.
MAIN FEATURES
• High Performance Digital Servo
• High Precision Plastic Gears
• Maximum Travel Angle Up to 180 Degrees
Ideal for 1:35 Scaler, 1S Powered Applications, Indoor 3D Flight, Small Park Flyers, RC Plane, Helicopter, Boat

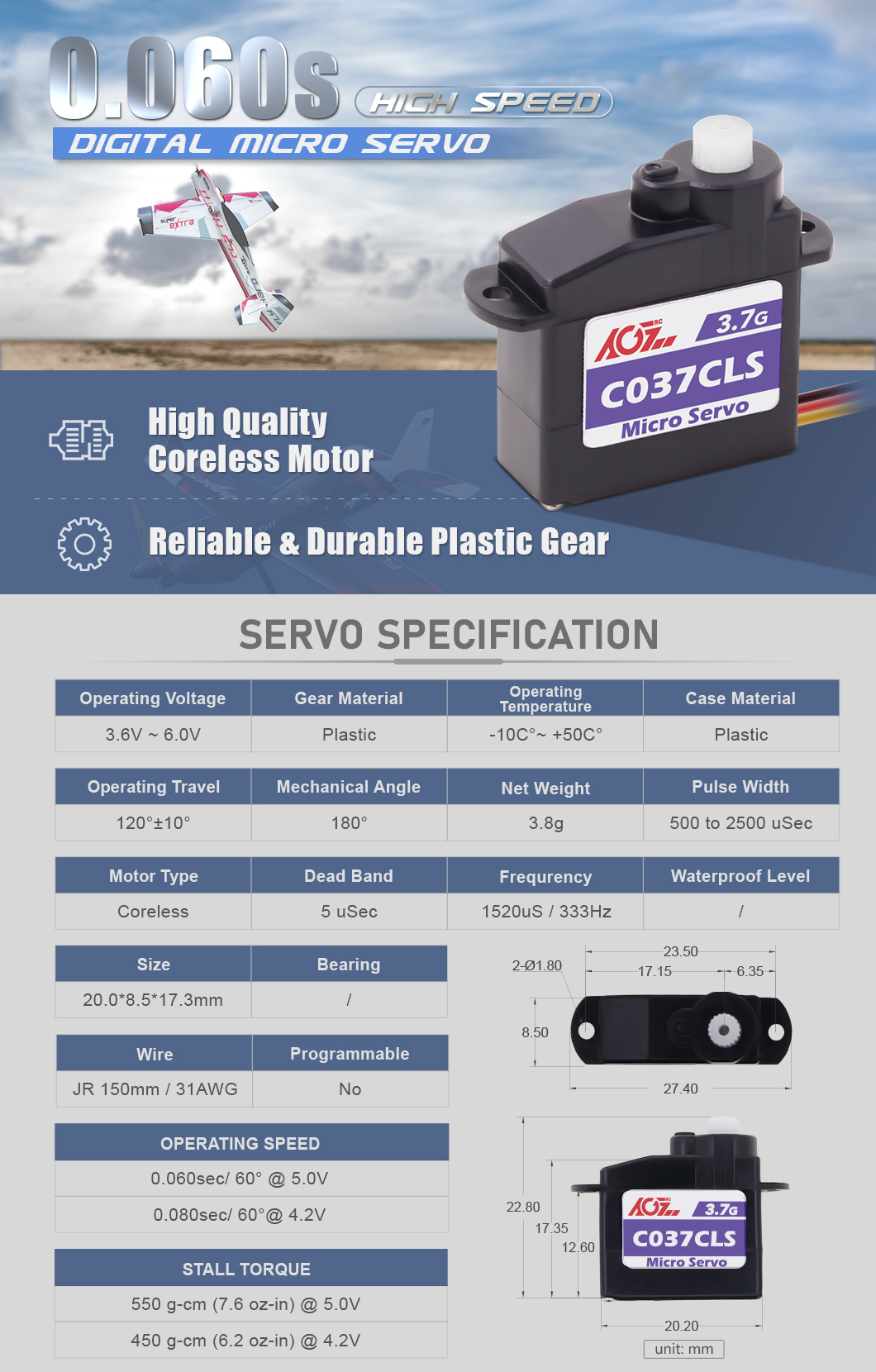

SPECIFICATIONS
Operating Voltage
3.6V - 6.0V
Temperature Range
-10°C - +50°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
120 ± 10°
Programmable
No
Case Material
Plastic
Gear Material
Plastic
Position Sensor
Potentiometer
Motor Type
Coreless
Bearing
--
Direction
CCW
Horn Gear Spline
20T-ɸ3.85 mm
Wire
JST(JR) 150mm / 31AWG
Wire Color
Dimensions
20.8*8.5*17.3 mm
Weight
2.2g
Operating Speed
0.080 sec/60° @4.2V
0.060 sec/60° @5.0V
Stall Torque
450 g·cm (6.2 oz·in) @4.2V
550 g·cm (7.6 oz·in) @5.0V

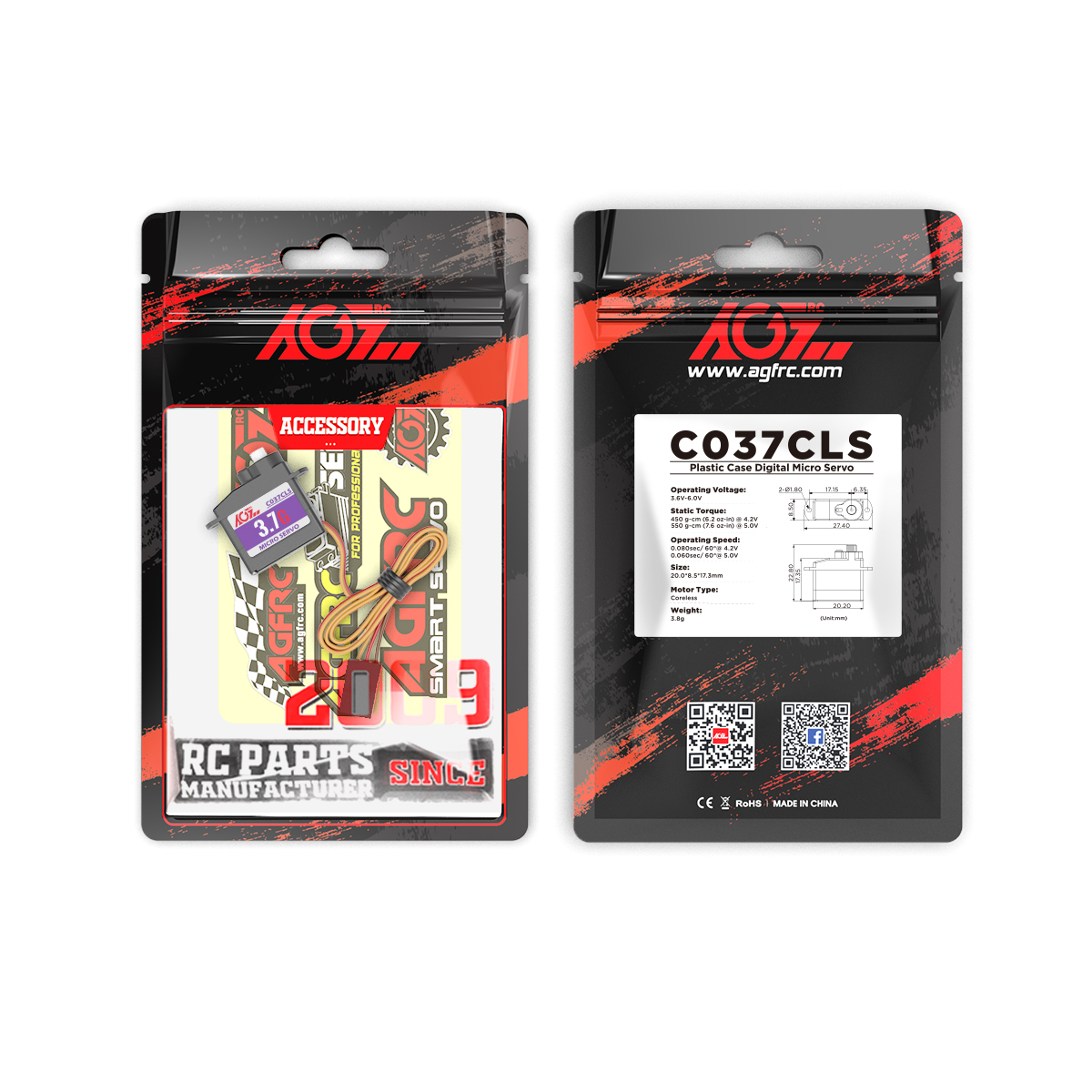

PACKAGE INCLUDES
Servo
1 x C037CLS Servo
