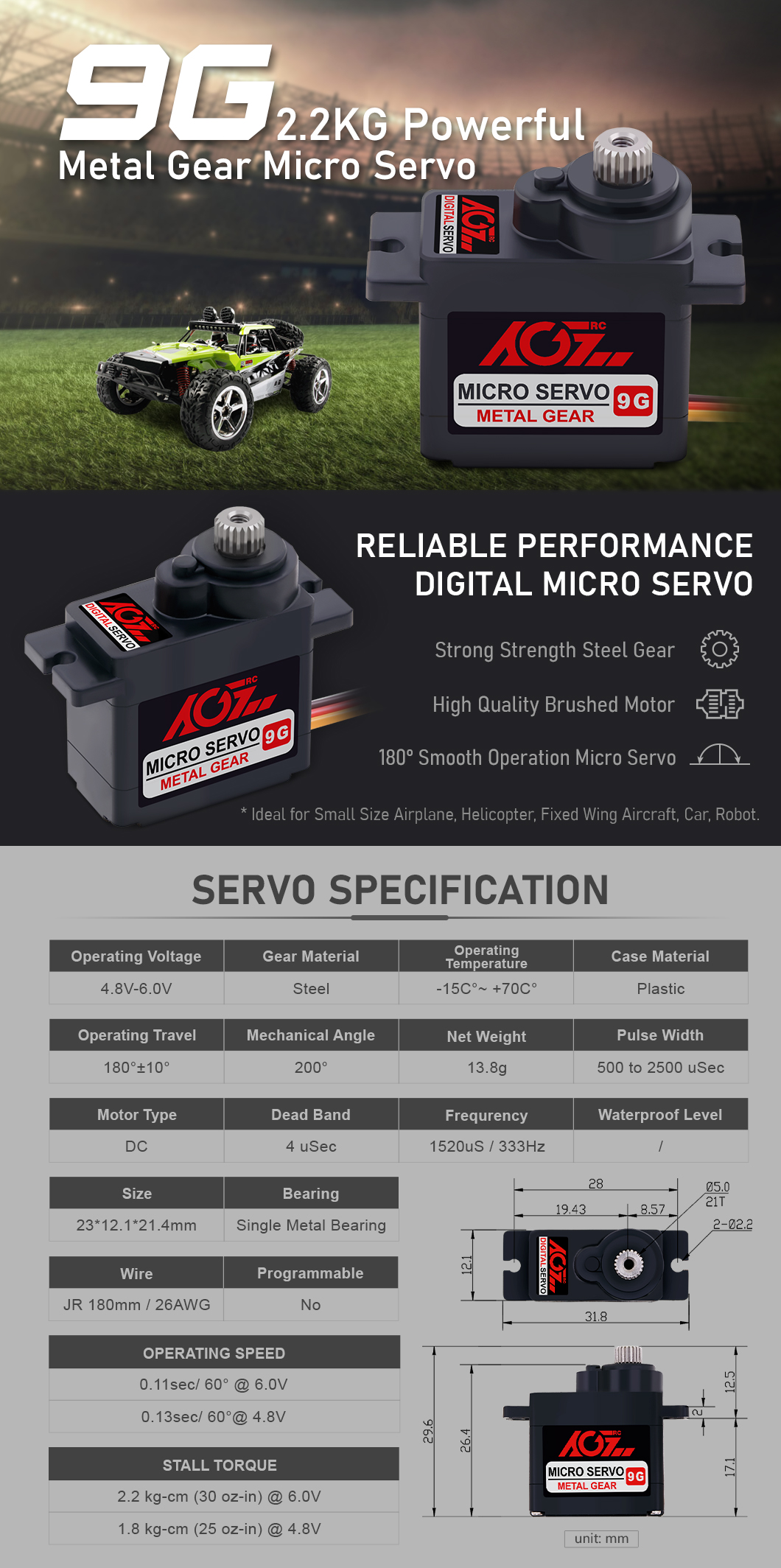

AGFRC B9DLM 180 Degree Micro 9g Size Steel Gear 2.2KG High Torque Digital DC Servo Motor for RC Airplane | OEM

B9DLM 2.2KG Metal Steel Gear 9g 180 Degree Digital Micro Servo for RC Airplane Helicopter

​AGFRC B9DLM is a 9g digital high performance micro servo, high durable metal gears and 21T steel spline, which produce 2.2KG torque and 0.11Sec speed at 6V. It is allowed to work between -15℃ to 70℃ environment temperature. 180° maximum operation angle can meet most of requirements, perfect suit for most small size RC Aircraft, Car, Helicopter, Robot etc.

 Main Feature

• High Performance Digital Servo
• Upgrade Reliable Steel Gear
• High Precision Metal Gear Structure
• High Quality Brushed Motor
• Ideal for Small Size Airplane, Helicopter, Fixed Wing Aircraft, Car, Robot

​ Specification

• Model Name: B9DLM
• Operating Voltage: 4.8-6.0V
• Operating speed: 0.13sec/60° @ 4.8V
• Operating speed: 0.11sec/60° @ 6.0V
• Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V
• Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V
• Motor type: DC
• Gear type: Steel
• Size: 23*12.1*21.4mm (0.9 x 0.47 x 0.84 in)
• Weight: 11g
• Connector Wire: JR 180mm

​ Download Spec Datasheet

​Please click HERE to download the spec datasheet for the B9DLM servo.
