A50BHLW waterproof Fast Speed 0.073Sec 19KG Low Profile Digital Brushless RC Servo for 1/10 Drift Touring
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

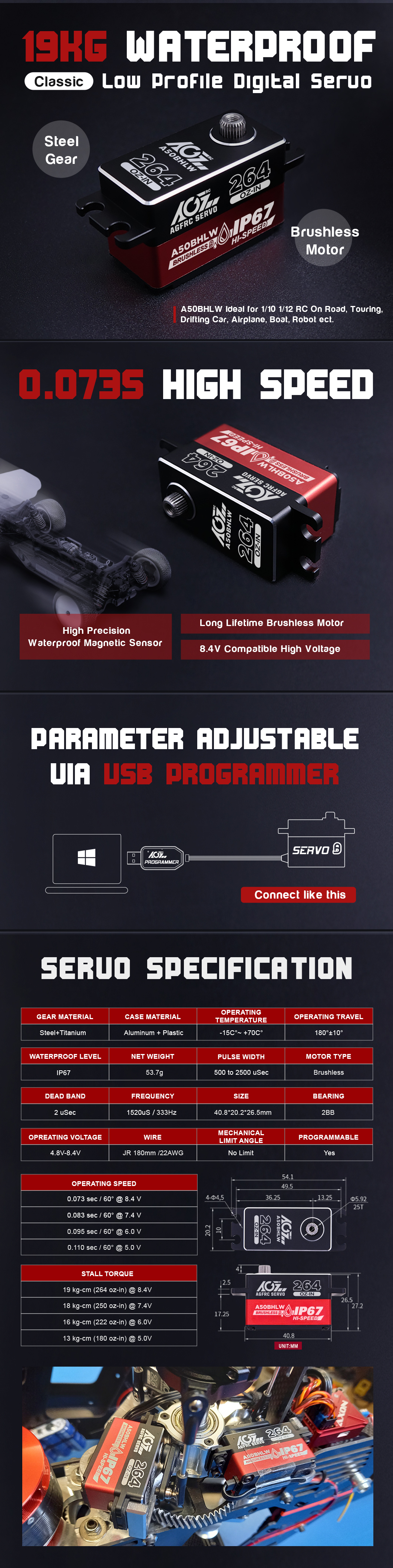

AGFRC A50BHLW 19KG Torque 0.073Sec Hi Speed CNC Case Brushless IP67 Waterproof Programmable Low Profile Servo Ideal For 1/10 RC Drifting Car
➤ A50BHLW high-performance low-profile digital servo is a waterproof version of A50BHL. It adds an IP67 magnetic waterproof function on the basis of A50BHL, which is very suitable for humid and drizzle environments. Allow RC hobbyist have more choices. It uses exquisite CNC case design, black and red colors, very beautiful and functional. 19KG torque and 0.073Sec high speed, with a high-quality brushless motor and super silky double bearings. Ideal for 1/10 1/12 RC On Road, Touring, Drifting Car, Airplane, Boat, Robot, etc.
MAIN FEATURES
➤ High Performance Low Profile Digital Servo.
➤ Magnetic Sensor Waterproof IP67.
➤ High Precision Steel Gear.
➤ Reliable Dual Ball Bearing.
➤ Programmable Digital Circuit.
➤ Aluminium Top and Medium Part.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum+Plastic
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 180mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5mm
Weight
55g
Operating Speed
0.110 sec/60° @4.8V
0.095 sec/60° @6.0V
0.083 sec/60° @7.4V
0.073 sec/60° @8.4V
Stall Torque
13 kg·cm (180 oz·in) @4.8V
16 kg·cm (222 oz·in) @6.0V
18 kg·cm (250 oz·in) @7.4V
19 kg·cm (264 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A50BHLW Servo
➤ 3 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
