Metal Gear HV Digital Coreless Wing Servo (A06CHR)

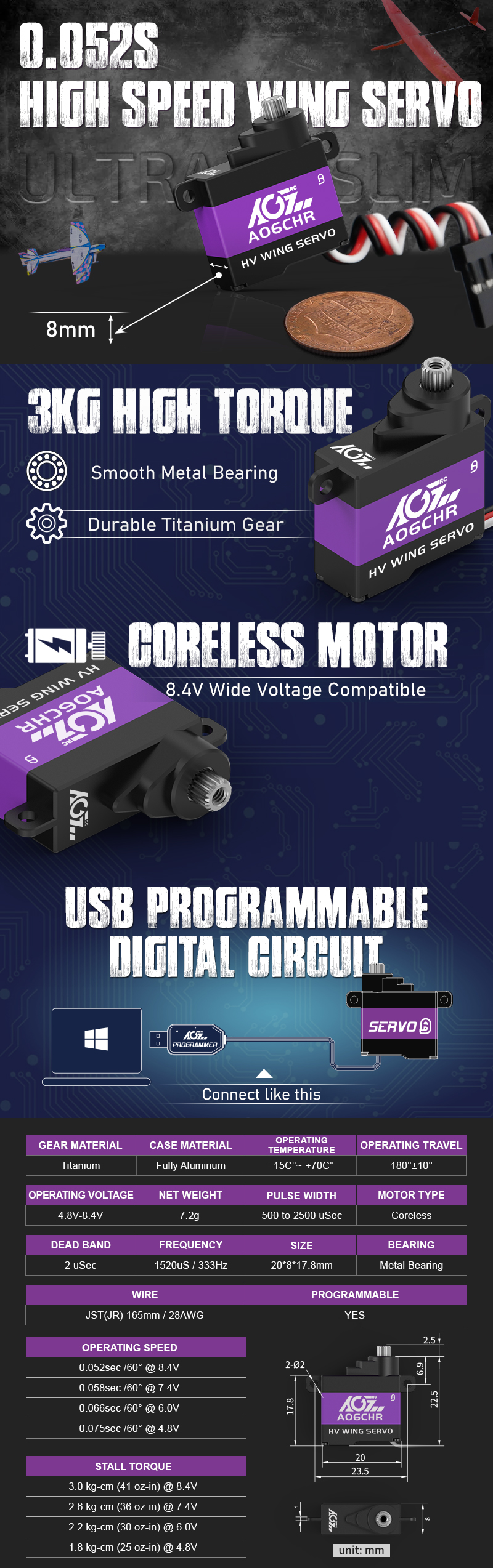

AGFRC A06CHR 8mm 0.052sec High Precision 3.0kg High Torque Coreless Motor Titanium Gear Micro Wing Servo For RC Glider

AGFRC A06CHR is a brand new mini size wing servo, full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. Perfect for small aircraft.

 ​Main Feature

• Sturdy Metal Ball Bearing
• Fully CNC Aluminium Casing
• Super Durability Metal Gears
• More Efficient Coreless Motor
• High Accuracy 8mm Micro Wing Servo
• Two Different Mounting Tabs Option
• Parameter Programmable Available
• Ideal for Small Size Airplane, Glider, Sailplane, such as F3P, GLD Airplane etc.

 ​Specification

• Model Name: A06CHR
• Operating Voltage: 4.8-8.4V
• Operating speed: 0.075sec /60° @ 4.8V
• Operating speed: 0.066sec /60° @ 6.0V
• Operating speed: 0.058sec /60° @ 7.4V
• Operating speed: 0.052sec /60° @ 8.4V
• Stall Torque: 1.8 kg-cm (25 oz-in) @ 4.8V
• Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V
• Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
• Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V
• Gear: Titanium
• Motor: Coreless
• Size: 20*8*17.8mm (0.78 x 0.31 x 0.71 in)
• Weight: 7.0 g
• Connector Wire: JST(JR) 165mm / 28AWG




 ​Download Spec datasheet

Please click HERE to download the spec datasheet for the A06CHR servo.
