AGFrc RC Servo
AGFRC A81BHSW 0.075Sec 35Kg High Speed Waterproof Programmable Servo
stars, based on 3 reviews
Estimated Standard shipping time is about 4 ~ 8 days
For the inventory goods, the package will be dispatched within 3 working days

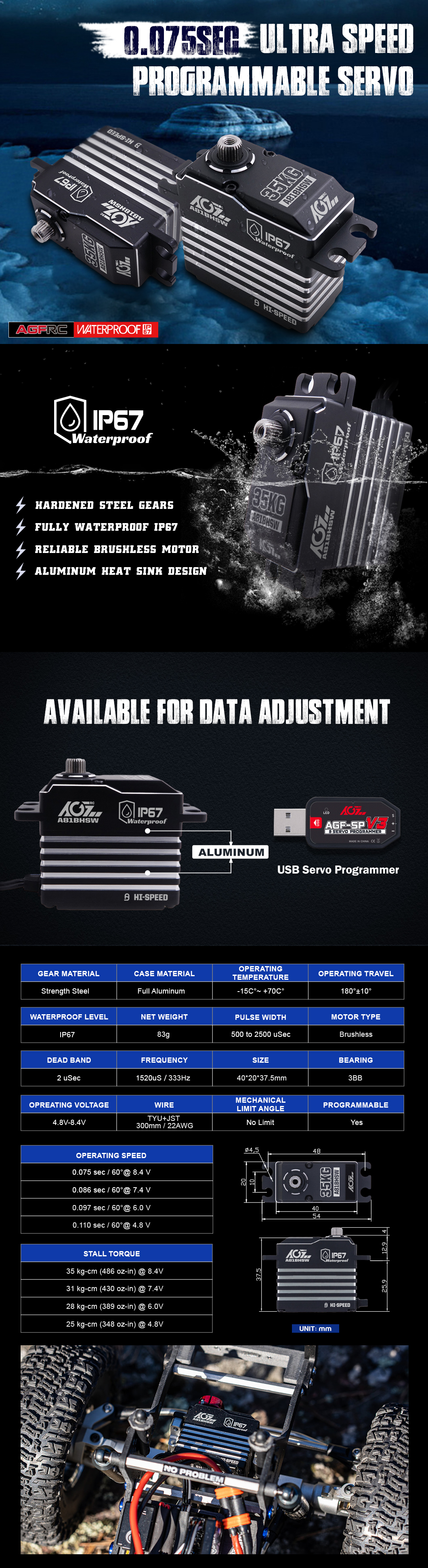

AGFRC 0.075Sec 35Kg High Speed Waterproof Programmable Servo (A81BHSW)
AGFRC monster torque servo can be common use in RC climbing cars, 1:8/1:10 Buggy, RC boat, helicopter, robots, mechanical arms, and others RC model.
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.
Main Features
• High Performance Standard Digital Servo
• Strengthen High Chrome Steel Shaft
• Extra Strong Patent Steel Gears
• Long Lifespan Brushless Motor
• Programmable Digital Circuit
• High Precision Magnetic Sensor
• Fully Waterproof Up To IP67 Grade
• Ideal for RC Car Airplane, Helicopter, Robot etc.
Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Position Sensor
Magnet Angle Sensor
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
83g
Operating Speed
0.110 sec/60° @4.8V
0.097 sec/60° @6.0V
0.086 sec/60° @7.4V
0.075 sec/60° @8.4V
Stall Torque
25 kg·cm (347 oz·in) @4.8V
28 kg·cm (389 oz·in) @6.0V
31 kg·cm (430 oz·in) @7.4V
35 kg·cm (486 oz·in) @8.4V
Package Includes
Servo
1 x A81BHSW Servo
Metal Horn
1 x 25T Metal Horn
Plastic Horn
2 x 25T Plastic Horn
Screw
4 x Mounting Screw
1 x Servo Horn Screw
Other Accessories
4 x Rubber Pad
4 x Copper Sleeve
Download
• Perhaps you will need a spec datasheet or other related documents of the
products. If there is a download button, it means you can simply click to download. We will continuously update
the latest files for each product.
• If you do not find the file you want, please feel free to contact
shopping@agfrc.com directly.
Download
Shipping Q&A
1. How long will it take for the order to be shipped after placing the order?
• Goods with available stock will be delivered within 3 working days.
• For goods without inventory, we will send you a notification by email. The delivery time will depend on the production schedule, generally within 10 days.
2. How long is the transportation time?
• Transportation time will depend on the shipping method and destination.
| Shipping Method | Estimated Delivery Time |
|---|---|
| DDP(Delivered Duty Paid) | 6 - 9 Days |
| Fast DDP(Delivered Duty Paid) | 2 - 4 Days |
| DHL/FedEx/UPS | 4 - 6 Days |
- Brand:
- AGFRC
- Iterm Name:
- A81BHSW
- Signal Mode:
- Digital
- Control System:
- Pulse Width Modulation Control
- Refresh Rate:
- 333Hz
- Neutral Position:
- 1520uS
- Dead band:
- 2 uSec
- Operating Voltage:
- 4.8V~8.4V
- Operating Travel:
- 180°±10°
- Mechanical Angle:
- No Limit
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Magnet Angle Sensor
- Temperature:
- -15C°~ +70C°
- Motor Type:
- Brushless
- Motor Drive:
- FET Drive
- Horn Gear Spline:
- 25T-φ5.92mm
- Programmable:
- Yes
- Bearing:
- Three Ball Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- AL6061T6
- Certification:
- CE,FCC,RoHs
- Wire Guage:
- JR 300mm / 22AWG
- Net Weight:
- 83g(2.93oz)
- Product Size:
- 40*20*37.2mm(1.57*0.79*1.46in)
