A35BHL 0.085Sec Fast Response Steel Gear Large Torque Programmable Brushless Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC Fast Response Steel Gear Large Torque Programmable Brushless Servo (A35BHL)
➤ A35BHL is a digital medium-sized servo. Featuring a more reliable brushless motor to provide more torque output. The chain of high-precision titanium gear, ruggedized steel gear, and dual ball bearing provides a quality user experience. It is a programmable servo support to adjust parameter settings. If the parameter can fit your needs, then get it for your cars or planes.
MAIN FEATURES
➤ Middle Compact Size Design.
➤ High Performance Digital Servo.
➤ Upgrade Robust Steel Gears.
➤ Longer Lifespan Brushless Motor.
➤ Smooth Dual Ball Bearing.
➤ Ideal for 1/12 Scale RC Cars, Large Cars/ trucks, 380-500 Size Helicopter Cyclic, 3D Helicopters, Jet Airplanes, Glider, Car, Robot, etc.

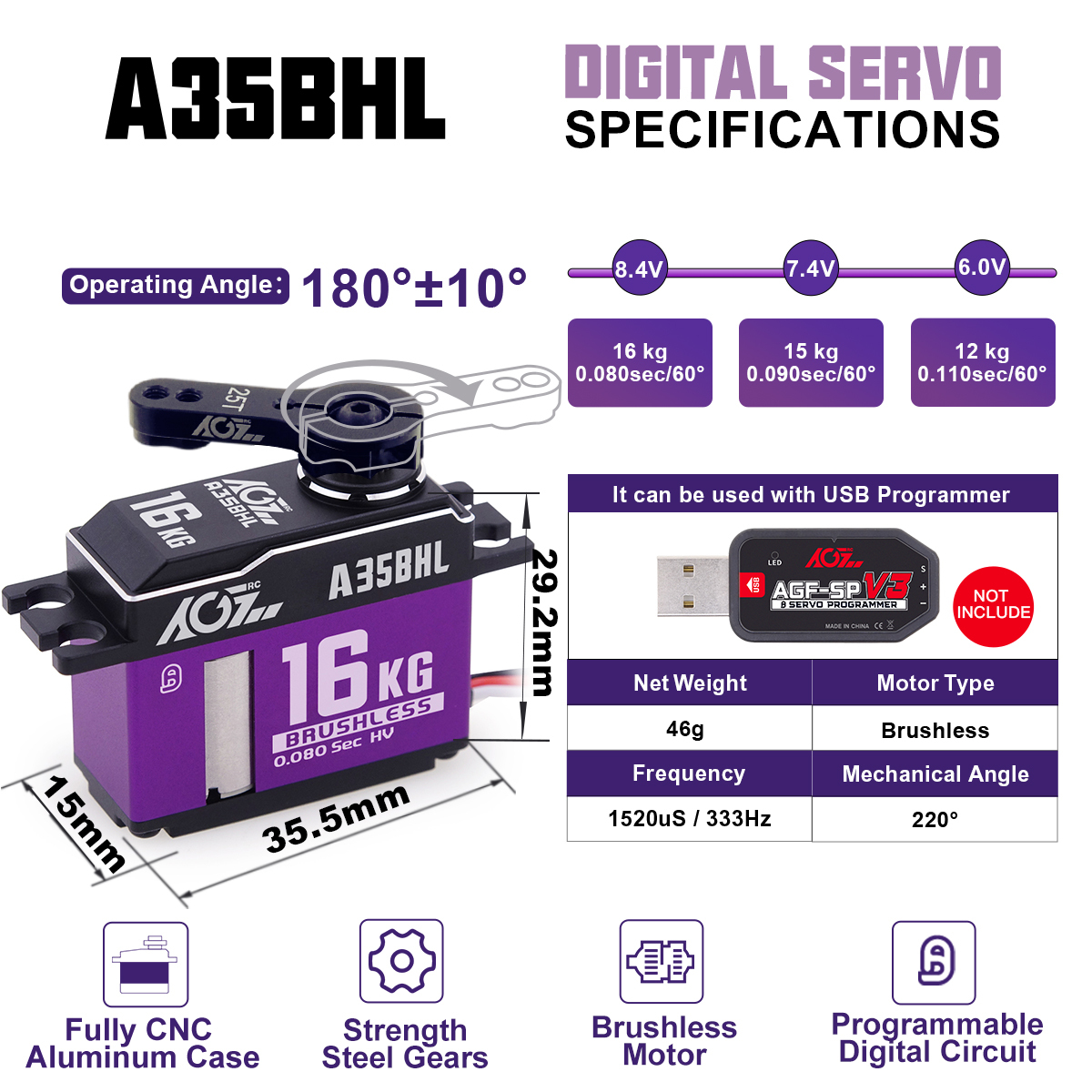

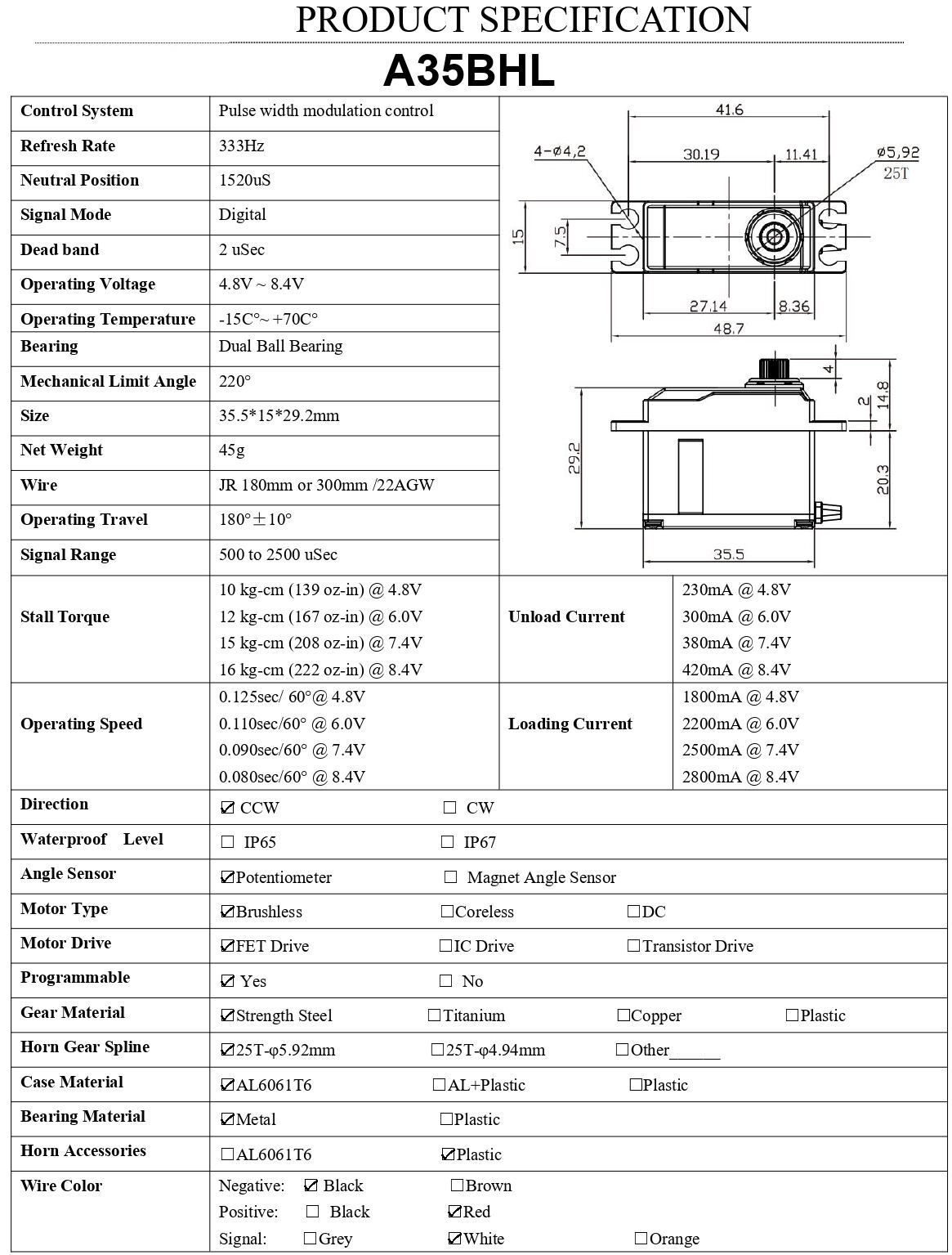

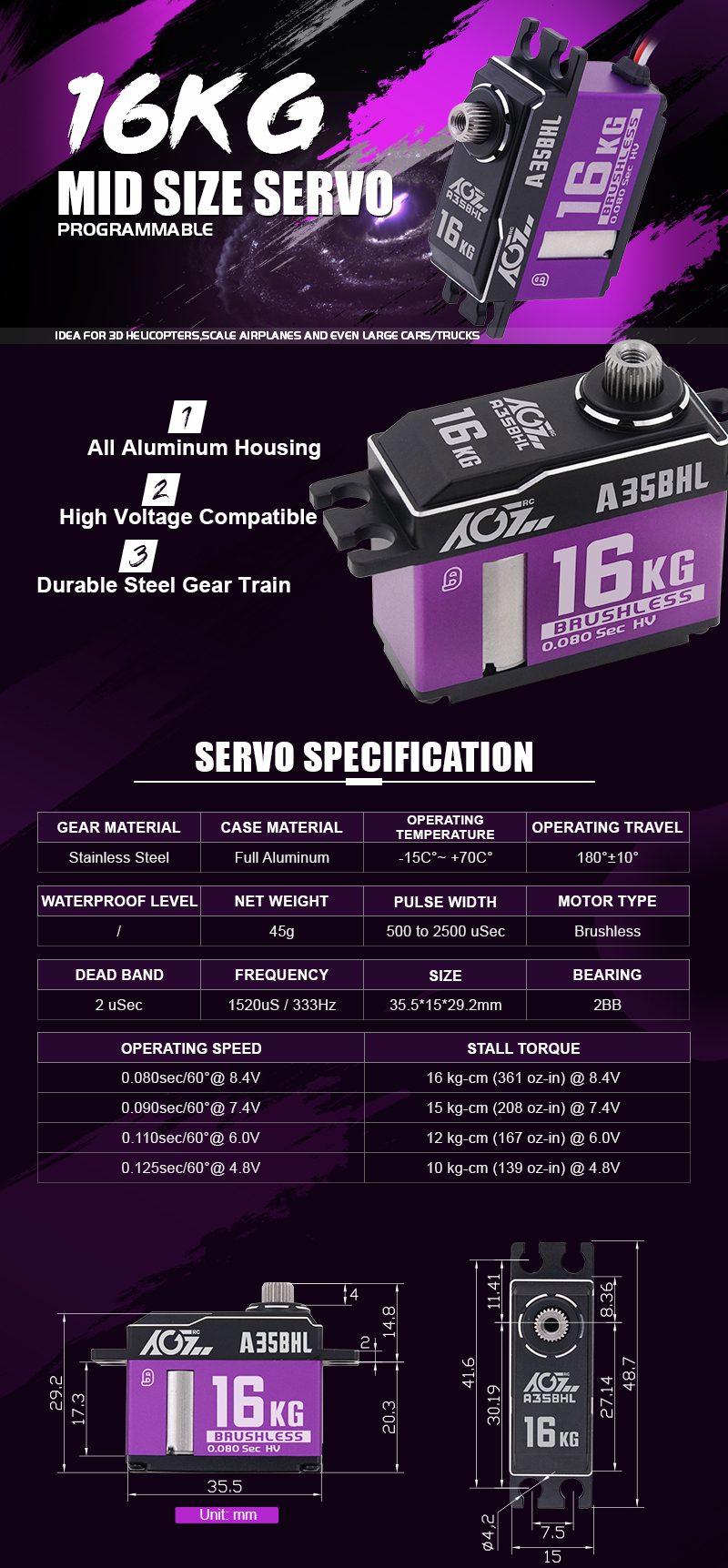

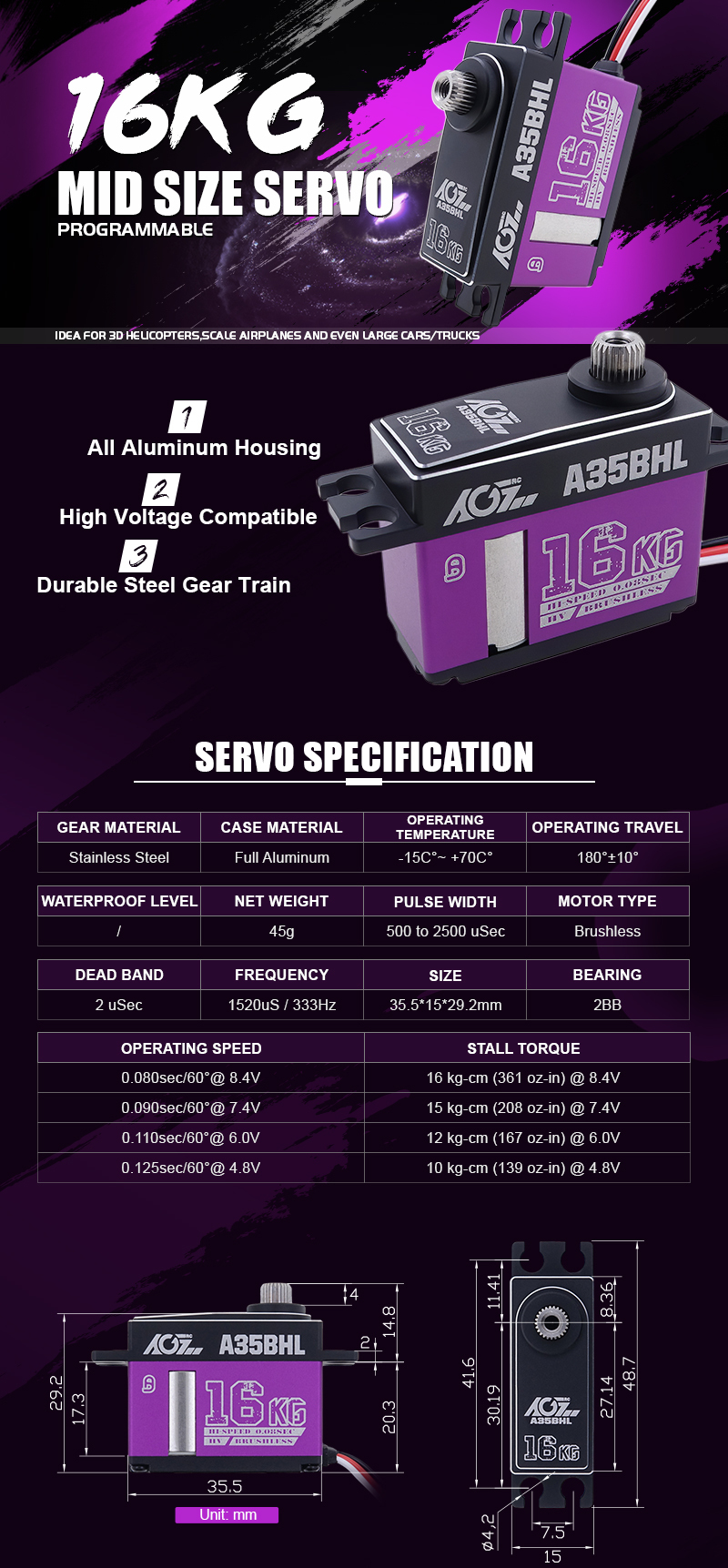

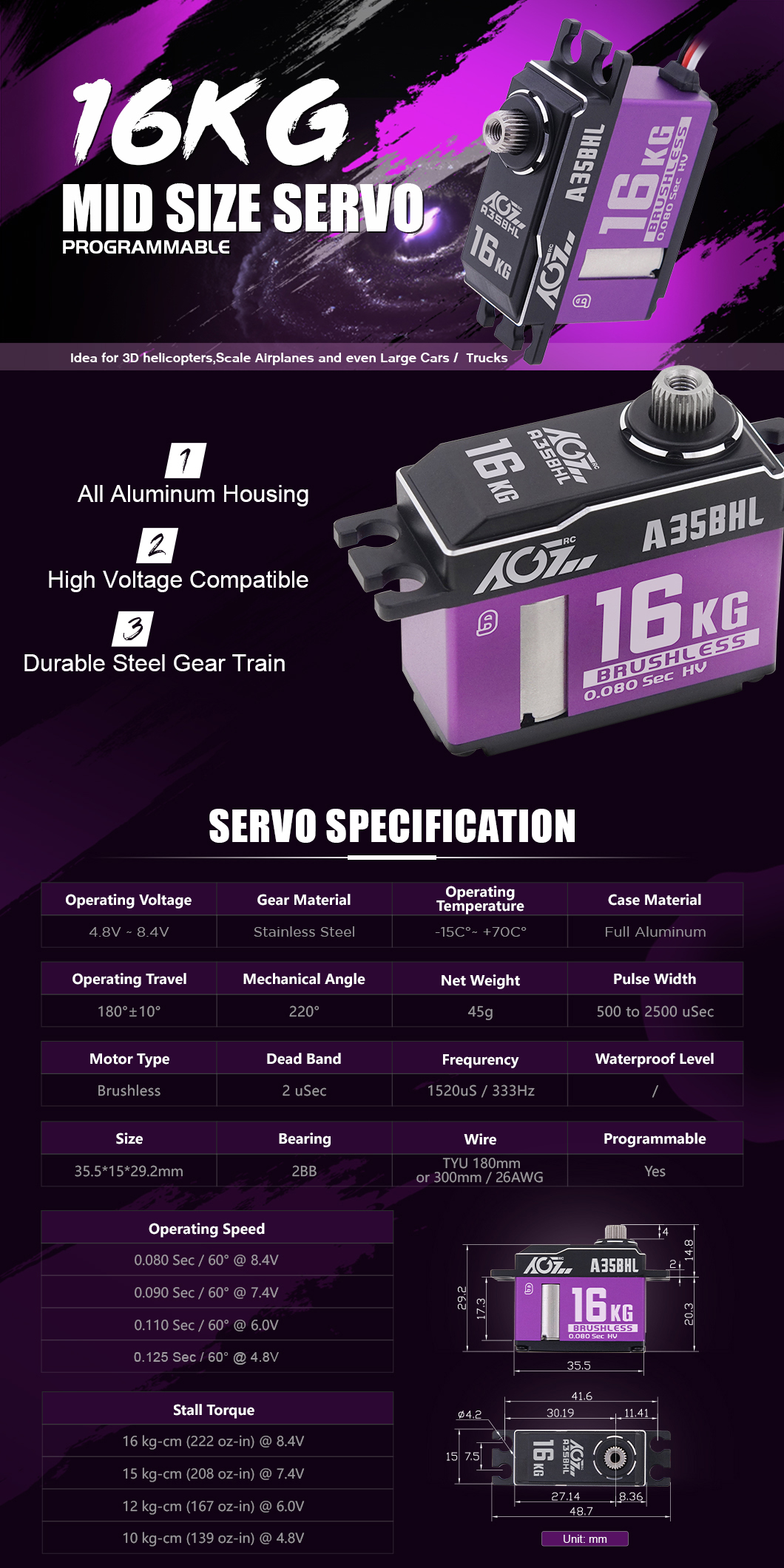

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 26AWG
Wire Color
Dimensions
35.5*15*29.2mm
Weight
46g
Operating Speed
0.125 sec/60° @4.8V
0.110 sec/60° @6.0V
0.090 sec/60° @7.4V
0.080 sec/60° @8.4V
Stall Torque
10 kg·cm (139 oz·in) @4.8V
12 kg·cm (167 oz·in) @6.0V
15 kg·cm (208 oz·in) @7.4V
16 kg·cm (222 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A35BHL Servo
➤ 4 x 25T Plastic Horns
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
