16CH SBUS D16 Mode Mini Receiver Compatible with Frsky Transmitter(MRF16CH)

stars, based on 0 reviews
$28.59 piece
100items available
Contact Us

    16CH RC Receiver - SBUS D16 Mini Receiver Especially Compatible with Frsky Multirotor Speed Controller (MRF16CH)

    Specification

    Item Name: MRF16CH

    Operating Voltage: 4.8V~8.4V

    Dimension: 26x19.2x5mm (exclude antenna)

    Weight: 3.8g

    Channels: S-BUS (16CH) + CPPMR (8CH) + RSSI (PWM)

    Antenna: Dual-antenna

    Communication Data: Bidirection communication

    Compatible OPEN TX FRSKY D16 remote control system

    Compatibility: FRSKY XSR, XJT and X9D,X9DP,X9E,X12S in D16 mode




          • Feature
          • 1) High quality PA to ensure high receiving sensitivity;
          • 2) Dual-antenna design, available to mount in different angle to increase the reception reliability;
          • 3) Dual serial signal S-BUS/PPM (8CH) output, connect directly to flight control system, especially for mini multirotor and aircraft to save mounting space;
          • 4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.

          • Bind Procedure
          • 1. Turn on transmitter, select MENU and enter MODEL SETUP, select D16 mode and start BIND function;

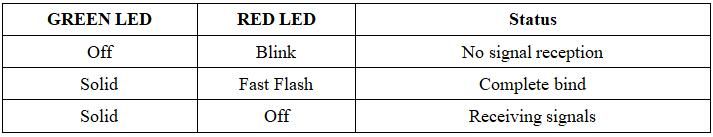

          2. Press and hold the SW on the receiver and power on, the GREEN LED on and RED change to flash means bind completely.

          3. Transmitter exit BIND function, power-on again the receiver, GREEN LED on means BING successfully;

          4. If failed binding, please repeat above steps.
