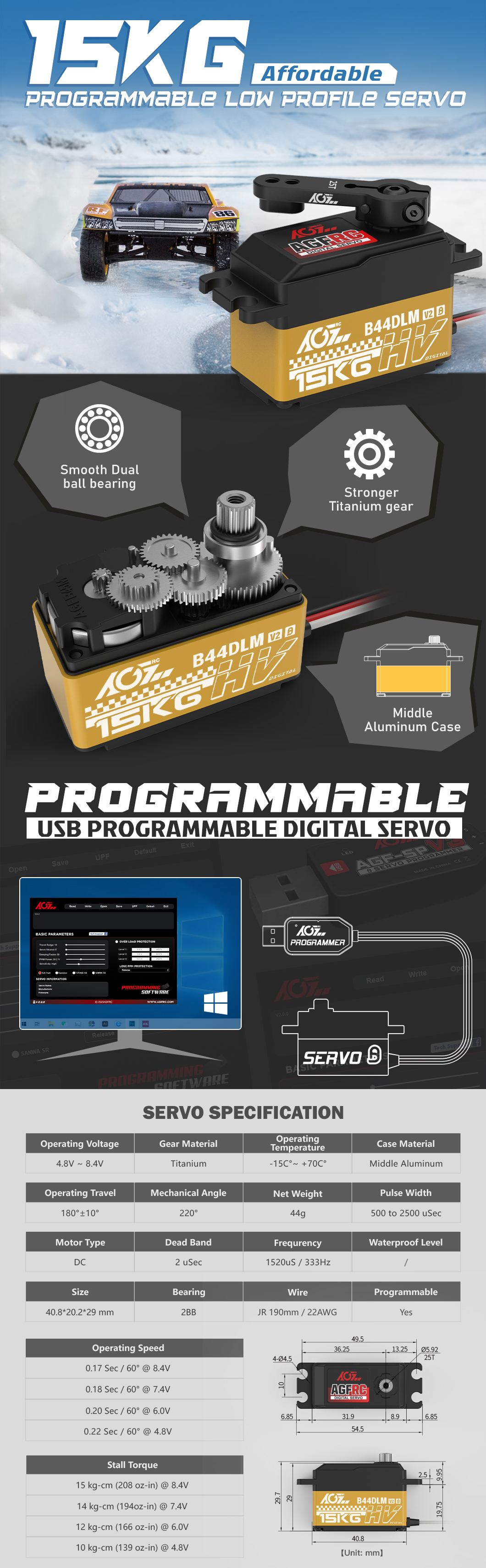

15KG High Torque Low profile Digital DC Motor Servo(B44DLM V2)

不能存图片

AGFRC 15kg 0.17sec Low Profile Programmable High Performance DC Motor Digital Steering RC Servo for 1/10 RC Touring Car (B44DLM V2)


AGFRC new product B44DLM V2 15.0KG torque affordable low-profile programmable DC servo are designed with plastic and CNC case, and their good airtightness can prevent dust and splashes. The high-precision titanium gears and smooth dual ball bearings keeps the servo stable and smooth during operation. 8.4V high voltage and 0.17Sec speed are very suitable for 1/10 1/12 drift car competition, Touring car, On Road, Pan car, etc. If you need parameter programming, you can use it with the AGF-SPV2 or AGF-SPV3 programming card.


Feature

High Performance Low Profile Digital Servo
High Precision Titanium Gear
High Quality DC motor

Dust And Splash Proof

Smooth Dual Ball Bearing
Aluminium Middle Case Design

Ideal For 1/10, 1/12 Touring, Drift Car, Boat, Aircraft, Robot.


Stall Torque:

10.0 kg-cm (139 oz-in) @ 4.8V

12.0 kg-cm (166 oz-in) @ 6.0V

14.0 kg-cm (194 oz-in) @ 7.4V

15.0 kg-cm (208 oz-in) @ 8.4V


Operating Speed:

0.220sec/60° @ 4.8V

0.200sec/60° @ 6.0V

0.180sec/60° @ 7.4V

0.170sec/60° @ 8.4V


  • Package Included

  • Item 1:
  • 1 x AGFRC B44DLM V2 Low Profile Servo
  • 1 x Accessory  Kit

  • Item 2:
  • 1 x AGFRC B44DLM V2 Low Profile Servo
  • 1 x 25T Black Metal Servo Horn
  • 1 x Accessory  Kit

  • Item 3:
  • 1 x AGFRC B44DLM V2 Low Profile Servo
  • 1 x AGF-SPV3 Servo Programmer
  • 1 x 25T Black Metal Servo Horn
  • 1 x Accessory  Kit


  • Note: Item 1 and 2 does not include the AGF-SPV3 servo programmer.



Brand:
AGFRC
Iterm Name:
B44DLM V2
Control System:
Pulse Width Modulation Control (PWM)
Refresh Rate:
333Hz
Neutral Position:
1520uS
Signal Mode:
Digital
Dead Band:
3 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Travel:
180°±10°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Potentiometer
Operating Temperature:
-15C°~ +70C°
Mechanical Angle:
220°
Waterproof Level:
/
Motor Type:
DC Motor
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
Yes
Bearing:
Double Ball Bearings
Bearing Material:
Metal
Gear Material:
Strength Steel + Titanium
Case Material:
Aluminium AL6061T6 + Plastic
Certification:
CE,FCC,RoHs
Product Size:
40.8*20.2*29mm (1.60 x 0.79 x 1.14 in)
Wire Guage:
JR 190mm / 22AWG
Net Weight:
44g
